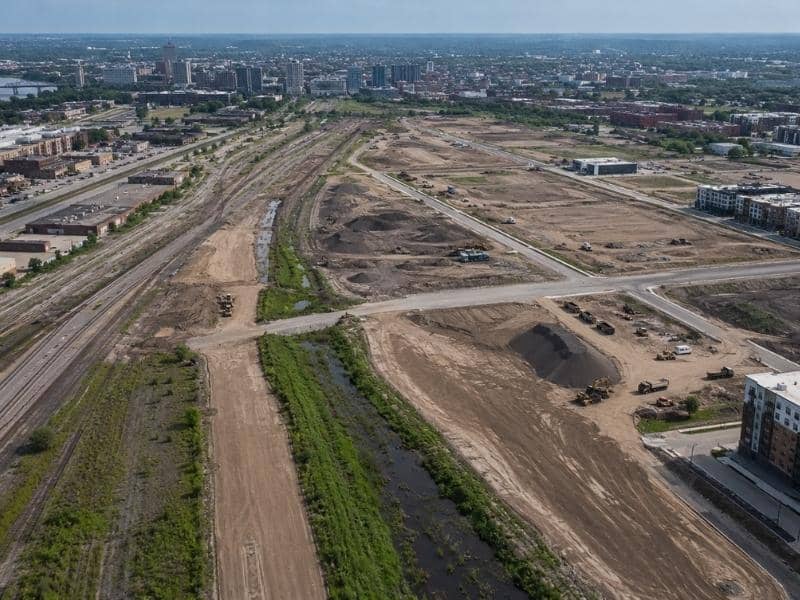

Drone LiDAR mapping suits former transportation properties better than almost any other survey method. These sites are large, flat in places, oddly shaped and full of leftover infrastructure. A closed airfield, a rail yard or a highway remnant can cover hundreds of acres. Ground crews would need weeks to map that much ground, and parts of it may sit behind fences, on unstable pavement or inside restricted areas. A flight collects the whole thing in a few days and hands designers one continuous surface to work from.

Mapping Large Properties With Irregular Shapes and Limited Access

Former transportation parcels rarely form neat rectangles. Runways angle across the site. Rail corridors curve through it. Ramps, embankments and drainage channels fill the spaces between. A flight plan can follow those shapes without the crew needing a straight line of sight from one end to the other.

Access restrictions make aerial work even more useful. Parts of these sites stay fenced, contaminated or structurally unsound long after operations end. A drone maps that ground without anyone entering it. Crews still place ground control in the areas they can reach safely, which is what anchors the data to real coordinates.

Coverage decisions come first. Flight height, overlap and sensor settings all affect point density and accuracy. Those settings get chosen against the design team’s needs, since a demolition estimate and a final grading design don’t require the same level of detail.

Recording Pavement, Drainage, and Remaining Transportation Features

The scan captures everything on the surface, which on these sites is a lot. Runway and taxiway pavement. Rail track and ballast. Loading platforms. Fuel pads. Culverts, ditches and outfalls. Fence lines, light bases and old signage. All of it lands in the point cloud in one pass.

Classification turns that cloud into usable products. Technicians separate ground returns from structures, vegetation and equipment. From there they build a terrain model, extract pavement edges, and pull out the linear features designers care about. Ditch inverts and culvert ends get identified where the data supports it.

Some features still need a ground visit. Pipe inverts inside a structure, buried utilities and anything under water stay invisible to the sensor. The crew notes those gaps and fills them with conventional measurement so the base map doesn’t imply information it doesn’t have.

Revealing Elevation Changes Across Broad Development Blocks

Big flat sites hide their slopes. A runway looks level and still drops several feet end to end. Old grading follows the logic of aircraft, trains or trucks, not of city blocks. LiDAR shows that shape across the entire property at once.

Designers need the full picture before laying out streets. A new grid has to connect to surrounding roads at fixed elevations. It has to drain somewhere. It has to work with the pavement that stays and the pavement that goes. Seeing the whole surface at once prevents a street layout that only works in one corner of the site.

Long-range slopes also drive drainage strategy. Where water currently collects on a former airfield tells the engineer where storage or trunk lines will end up. That decision shapes block sizes and building placement early on.

Calculating Demolition, Grading, and Earthwork Requirements

Quantities come out of the surface model directly. Pavement areas get measured for removal. Embankments and berms get measured for excavation. Low areas get measured for fill. Those numbers go into early budgets while the master plan is still moving.

Balance is the goal on a site this size. Hauling material off a large redevelopment costs a fortune, so designers try to reuse what’s already there. Crushed pavement often becomes base material. Excavated embankments often become fill somewhere else. The model lets a team test whether a proposed grading plan comes close to balancing before anyone commits to it.

Phasing benefits too. Splitting the site into development blocks and computing quantities for each one shows which phase carries the heaviest earthwork cost. That information can change the order the phases get built in.

Updating the Digital Site Model During Long-Term Redevelopment

Redevelopment on this scale runs for years. Buildings come down. Utilities go in. Streets get built. Each of those changes makes the original model less accurate. Repeat flights keep the base current without repeating the whole survey by hand.

Comparison between flights measures progress. Subtracting one surface from another shows how much material moved during a phase. Owners use those numbers to verify contractor quantities. Designers use them to update the model that the next phase gets built from.

The mapping record also outlives the project. A district built in eight phases over a decade ends up with a documented history of its own ground. Future utility work, expansion and maintenance all start from better information because of it.
