A dry basement can turn wet for one boring reason: the water outside has nowhere better to go. Before you tear out drywall or dig a french drain, a topographic survey shows you why the water keeps coming. It maps the exact slope of the lot and where runoff heads. For developers, that map is the difference between fixing the real problem and guessing. Here’s how survey data points you to the true cause and the right fix.

Surface Drainage Patterns That Can Contribute to Basement Water Issues

Most basement water starts at the surface, not underground. Water lands on the lot, then follows the slope. If that slope aims at the house, the foundation takes the hit.

A few common patterns push water toward a basement:

• Ground that slopes back toward the foundation instead of away
• A neighbor’s higher lot draining onto yours
• A low spot near the house where water pools and sits
• Downspouts that dump right next to the wall
• A driveway or patio that funnels runoff at the foundation

You can’t fix what you can’t see. These patterns are easy to miss by eye, since a gentle slope looks flat to most people. A survey measures the fall in inches, so the real path shows up clearly.

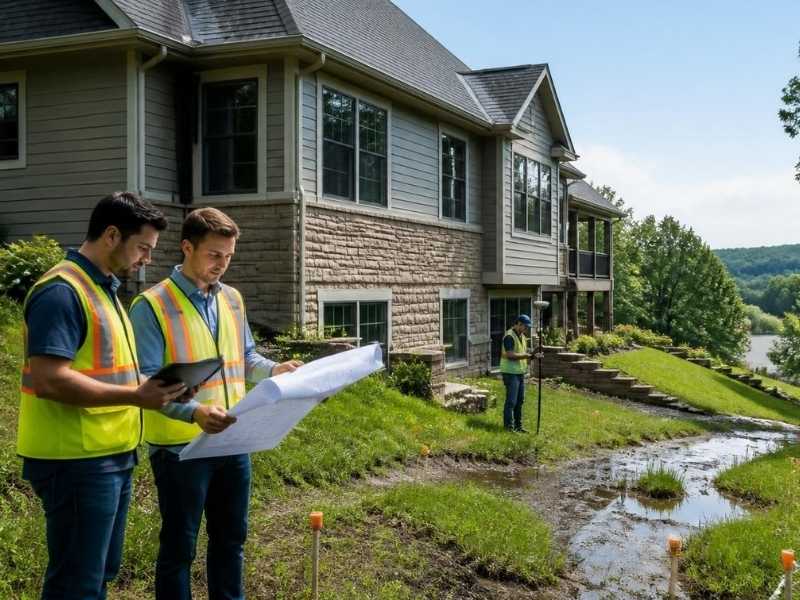

How a Topographic Survey Maps Water Flow Across a Property

A topographic survey records the elevation of the land across the whole lot. It plots high points, low points, and every grade change on a scaled map. Those elevation lines show exactly where water will travel.

The surveyor shoots many points across the property. Then those points become contour lines on the drawing. Lines close together mean a steep slope. Lines far apart mean flat ground. When you read them together, the water’s route becomes obvious.

This map does something your eyes can’t. It reveals the true low spots and the direction of fall down to a fraction of a foot. A designer can then see whether runoff moves away from the house or straight at it. That’s the data a real drainage fix is built on.

Elevation Features That Influence Drainage Around the Home

Small changes in height drive big water problems. The survey captures the features that decide where runoff goes. These are the details that matter most around a foundation.

Watch these elevation features on the survey:

• The slope of the ground within ten feet of the foundation
• High points that send water toward or away from the house
• Swales, which are shallow channels that carry runoff
• The level of the driveway, walks, and patios next to the home
• Existing drains, catch basins, and their rim elevations

Say the ground within a few feet of the wall slopes the wrong way. Code often calls for the grade to drop away from the house over the first several feet. The survey shows if that slope is missing. Now you know the grading needs work, not just the gutters.

Using Survey Data to Evaluate Potential Drainage Improvements

Once you have the map, you can test fixes before you dig. The survey lets your team plan grading and drains that actually match the site. No more trial and error with a rented excavator.

Start by finding where water needs to go. The survey shows a safe outlet, like a lower point at the edge of the lot or a street drain. From there, a designer can size a swale or a pipe to carry runoff there. The grades on the map confirm the water will flow, since water won’t run uphill.

The data also helps you compare options on cost. Regrading a yard, adding a swale, or installing a drain each need different amounts of fall. The survey tells you which fixes the site can support. You spend money on the solution that works, not the one that sounds good.

Common fixes the survey can support

• Regrading the soil to slope away from the foundation
• Cutting a swale to steer runoff around the house
• Adding a catch basin at a low spot with a pipe to a safe outlet
• Extending downspouts to daylight well away from the wall
• Building up a low area so water no longer pools near the home

When a Topographic Survey Should Be Part of a Drainage Assessment

A topographic survey belongs at the front of any serious drainage plan. Order it before design, not after a fix has already failed. Early data saves you from paying twice.

Get a survey when the water problem keeps coming back despite basic repairs. It’s also smart before a big project, like a new addition or a full yard regrade. Anytime you plan to move soil near a foundation, you need to know the grades first. Guessing at slope is how good money gets buried in the ground.

Here’s the simple order of operations:

• Order the topographic survey before any drainage design
• Have the surveyor map grades close to the foundation and across the lot
• Give the map to your civil designer or drainage contractor
• Plan grading and drains around the real elevations
• Keep the survey on file for permits and future work

Do this and you treat the cause, not the symptom. Skip it and you may spend thousands on a drain that points the wrong way. For a developer, the survey is the cheapest step in the whole job. Measure the ground, read the water, then build the fix.

Frequently Asked Questions

Can a topographic survey really tell me why my basement floods?

A topographic survey shows the exact slope and low points around your home. That data reveals whether surface water flows toward the foundation or away from it. Many basement leaks trace back to grading that sends runoff at the wall. The survey gives you proof of the cause instead of a guess.

Is a topographic survey different from a regular property survey?

Yes, the two surveys answer different questions. A boundary survey shows where your property lines sit. A topographic survey shows the shape of the land, including slopes and elevations. For basement water problems, the topographic version is the one that maps how runoff moves.

How close to the foundation should the survey measure grades?

A good drainage survey captures grades right up against the foundation. The area within about ten feet of the wall matters most for water control. The surveyor also maps the wider lot to find high points and outlets. Together, that shows both the problem zone and where water can safely go.
