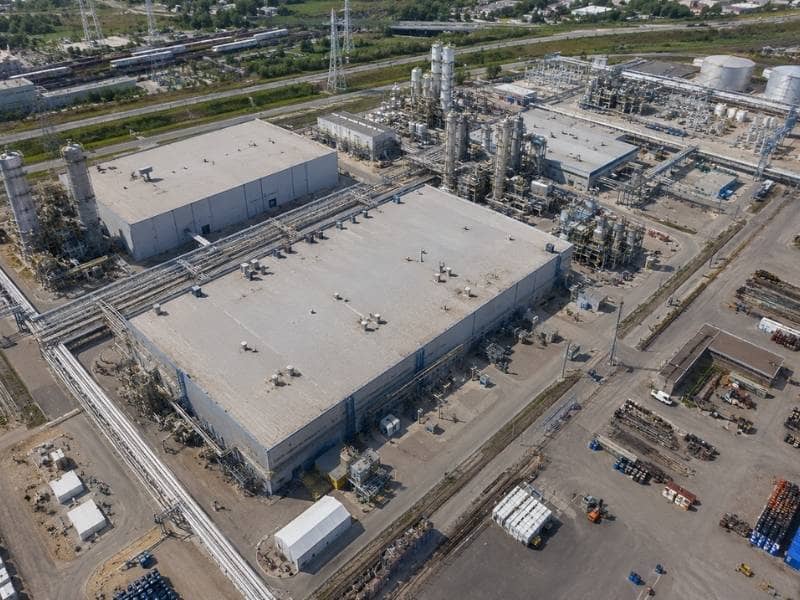

Drone LiDAR mapping has changed how crews document sprawling industrial sites without walking every dangerous corner of them. A drone carrying a laser scanner flies overhead and fires thousands of pulses each second, building a dense cloud of points that describes roofs, yards and equipment in fine detail. For a plant with tall stacks, active traffic and roofs nobody should climb, that view from above saves time and keeps people out of harm’s way. The catch is that good data still depends on careful planning and solid ground control.

Planning Flight Coverage Around Industrial Obstacles

A flight plan for an industrial site starts with a list of hazards. Tall stacks, cranes and power lines all sit in the drone’s path, and reflective metal roofs can scatter a laser pulse in odd ways. The crew studies the site first so none of these surprises the pilot mid-flight.

From there, they mark restricted zones and set flight lines and altitude to keep the aircraft safe while still capturing full coverage. They also coordinate with site managers, since a working plant may put certain areas off-limits during certain hours. A flight scheduled around plant operations avoids both danger and downtime.

Good planning here prevents two problems at once. It keeps the drone away from anything it could strike, and it stops gaps from appearing in the final data. A missed strip usually means a second trip, which is exactly what aerial mapping is meant to avoid.

Separating Roof Geometry from Ground-Level Mapping

One flight can map both the roofs and the ground, but technicians must sort the data afterward. LiDAR records points at every level it hits, so a raw cloud mixes rooftop edges, ground surfaces and everything between. Left unsorted, it reads as a confusing blur.

Technicians classify these points by height and angle to bring order to the cloud. Roof outlines and rooftop equipment go into one layer, while pavement, yards and terrain go into another. This split lets a designer study the roof plan alone or drop away the buildings to see the bare ground.

That clean separation pays off during design. A team planning a new rooftop unit works from the roof layer, while a team studying drainage works from the ground layer. Each sees only what they need, without the other getting in the way.

Mapping Areas That Are Unsafe or Disruptive to Measure Conventionally

Some parts of an industrial site are risky or impractical to measure on foot, and this is where aerial scanning earns its keep. A crew would rather not stand on a fragile roof, walk through an active rail yard or climb over stockpiles to gather points. A drone reaches all of these from above in a single pass.

The benefit goes beyond safety. A drone maps an operating yard without stopping the work below, so the plant keeps running while data comes in. That alone can save a facility from a shutdown it would otherwise need for a ground survey.

Still, the method has limits worth naming. Aerial scanning captures what it can see from the sky, so a crew may need to walk certain spots on the ground to confirm details the drone couldn’t catch. Honest crews plan for those checks instead of pretending the flight caught everything.

Combining Aerial Data with Survey Control and Field Observations

Aerial data means little until it locks onto real-world coordinates. Before or during the flight, the crew sets control points on the ground and measures them with survey-grade equipment. They also place checkpoints, which are extra known spots used to test the finished results.

The crew then fits the drone cloud to these points so its positions match the site’s true location and height. Field crews record features the laser missed, like a pipe tucked under an overhang or a valve hidden by equipment. These ground observations fill the blind spots that any aerial view leaves.

This blend of aerial reach and ground accuracy is what separates a survey-grade product from a pretty picture. The control gives the data its correct place in the world, and the field notes give it completeness. Together they turn a scan into something a design team can build from.

Producing Models for Facility Planning and Adaptive Reuse

The finished data turns into tools a facility team can actually use. From the point cloud, technicians build surface models, roof outlines and orthophotos, which are aerial images corrected so measurements taken from them stay true. Each product answers a different planning question.

Planners lean on these tools to study clearances, plan equipment moves or test whether an old building can take on a new use. A dense cloud, often carrying hundreds of points per square meter, holds enough detail to support decisions long after the drone lands. Questions that come up months later can be answered from the same dataset.

That lasting value is a big reason owners choose LiDAR for large sites. One flight becomes a record the facility returns to again and again. Instead of ordering a new survey for every question, the team mines the data they already own.
