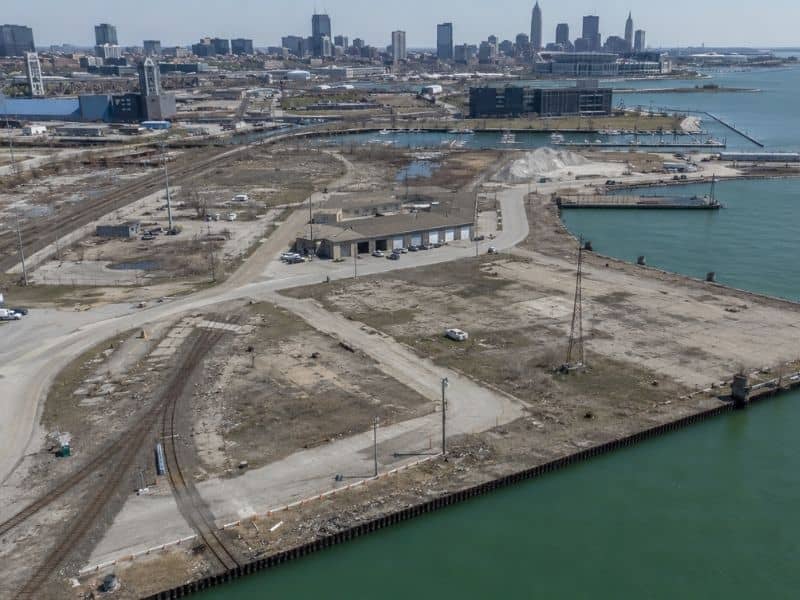

An ALTA survey on a lakefront redevelopment site does more work than the same survey inland. Waterfront parcels collect complications over time. Rail lines cross them. Roads and utility corridors split them. Filled ground extends them past their original shoreline. Old agreements grant rights that never show up on a plat. A buyer looking at a large lakefront tract needs all of that mapped and compared against the title commitment before closing. That’s the job an ALTA survey does.

Researching Title Matters Across a Complex Waterfront Parcel

Research starts with the title commitment and runs outward. The surveyor reads every document listed in Schedule B, then requests copies of anything the commitment references but doesn’t attach. Deeds, easements, leases, recorded agreements, prior surveys and old plats all go into the file.

Waterfront parcels tend to have deep record histories. Ownership may trace back through railroads, industrial companies, port authorities or public agencies. Each of those transfers can leave behind a right that survived. The surveyor traces the chain far enough back to understand what the current description actually covers.

Plotting comes next. Each recorded interest gets drawn on the survey in its correct position. Some plot cleanly. Others describe a strip in vague terms, or reference a structure that no longer exists. The surveyor notes those clearly instead of guessing at a location.

Locating Roads, Rail Features, Utilities, and Access Corridors

Large waterfront sites are usually crossed by infrastructure that predates the redevelopment. Crews locate roads, rail spurs, active track, signal equipment, utility poles, vaults, manholes and pipeline markers. Each of those features gets shown with a dimension to the boundary.

Position and rights are two different questions. A rail line running through the property may sit inside a recorded easement, on a fee-owned strip carved out of the parcel, or on ground where the right expired years ago. The survey shows what’s on the ground and what the records say, then lets the title company and attorney sort out the difference.

Access matters as much as anything else here. Waterfront tracts can look connected to the street network and still lack a recorded right to reach it. The survey identifies the physical routes in and out and shows which ones are supported by an easement or a public right of way.

Documenting Shoreline Improvements and Water-Related Boundaries

Shoreline structures get located as built features. Crews measure seawalls, bulkheads, revetments, docks, piers and erosion control structures. They record the top of wall, the water’s edge on the day of survey, and the position of each structure relative to the boundary.

Filled land raises harder questions. Ground added over time may or may not belong to the upland owner, depending on how it was created and what the state allows. The survey shows the mapped water boundary from the records, shows the current physical shoreline, and reports the difference. Resolving ownership of that strip is a legal matter, not a survey one.

Saying so on the drawing protects everyone. A note explaining what the survey did and did not determine keeps a buyer from assuming more certainty than the evidence supports.

Identifying Encroachments Around Parking and Public Spaces

Waterfront redevelopment sites often sit beside public parks, promenades and shared parking. Improvements drift across those edges over the years. Crews measure fences, pavement, light poles, walkways, landscaping and any structure near the line.

Encroachments run both directions. A neighbor’s parking lot may occupy part of the site. The site’s own pavement may sit on public land, sometimes under a permit and sometimes under nothing at all. Both situations affect what a buyer can build and what they may have to remove.

Utility structures deserve a second look. Equipment installed outside a recorded easement creates a problem for both the owner and the utility. Showing the structure with a dimension to the easement line makes that visible.

Selecting Table A Items for the Planned Transaction

Table A holds the optional items a client can request on an ALTA survey. The buyer, lender, title company and design team decide together which ones the deal needs. Requests should be made before fieldwork starts, since several of them change how a crew spends its time.

On a lakefront redevelopment, the request usually gets driven by:

• Flood zone information and elevations for design and insurance
• Utility evidence gathered from records and field markings
• Building and improvement locations, including height where relevant
• Parking counts and striping for existing commercial areas
• Offsite easements and access rights serving the property

Cost and schedule follow the request. A larger scope takes longer and costs more, and on a big waterfront tract the difference is meaningful. Deciding early keeps the survey from becoming the item everyone waits on.

Frequently Asked Questions

Does an ALTA survey automatically establish every shoreline-related boundary?

No. The survey shows the record water boundary, the current physical shoreline and the difference between them. Ownership of filled or submerged ground often depends on state law and the history of how the fill was created. That determination takes legal review, not just measurement.

Can filled or submerged land interests affect a lakefront survey?

Yes, and often significantly. Land added over the original shoreline may carry different ownership or use restrictions than the upland parcel. Public trust interests, state grants and old fill agreements can all apply. The survey documents the conditions and identifies the questions.

Which records should be available before waterfront ALTA fieldwork begins?

The title commitment with copies of all Schedule B documents, prior surveys, recorded plats, easement agreements, and any rail, utility or agency documents affecting the site. Older shoreline records and fill agreements help too. The more complete the file, the fewer surprises appear late.
